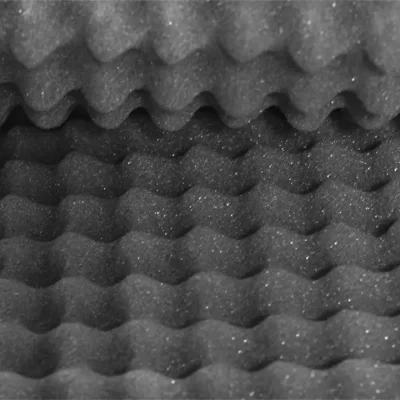

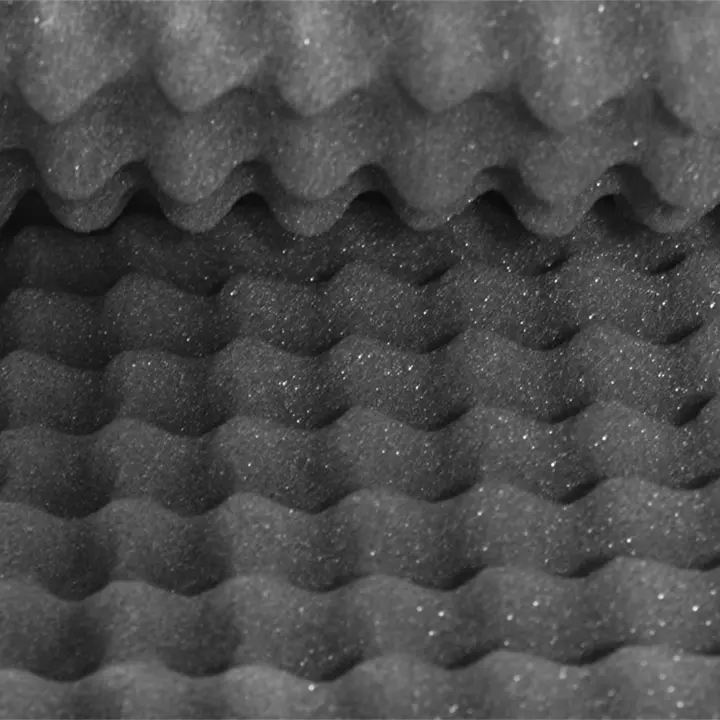

Egg Crate Shape Acoustic Foam
Product Code: FV-Acoustics-ECSF
Our Fire Retardant Egg Crate Acoustic Flexible Foams are designed for a broad range of home and industrial acoustic applications where a lightweight yet high-performance noise absorber is essential. Engineered with an optimized open-cell structure—balancing pore size, air-flow resistance, and density—these foams offer excellent absorption of both high- and low-frequency airborne sound.
The distinctive three-dimensional egg crate pattern increases surface area, enhancing the foam’s ability to trap and dissipate sound energy by converting it into heat, which significantly reduces noise transmission and improves acoustic quality. These foams are inherently fire retardant and can be supplied with certifications such as UL-94, CA-117, BS5852, and FMVSS302.Egg crate acoustic foams are widely used for sound absorption and sound diffusion, making them ideal for studios, piano rooms, study rooms, drum rooms, home theatres, meeting rooms, instrument rooms, recording rooms, machinery canopies, compressors, silent rooms, cinemas, multiplexes, and various industrial noise-control enclosures.
Description
Their lightweight and flexible nature makes them easy to install, die-cut, and integrate into complex shapes or tight spaces. They are also highly affordable compared to many other acoustic products in the market, while still offering excellent performance and long-term durability.
To enhance functionality, these foams can be provided with acoustic coatings for better surface protection and self-adhesive backing for quick and secure installation. The coated versions help resist contamination, increase lifespan, and improve overall product performance. Depending on customer requirements, egg crate foams can be produced in various depths, thicknesses, widths, and densities ranging from 23 kg/m³ to 60 kg/m³. They are available in any required size and commonly offered in grey or white.
We maintain strong supply capacity with no constraints and package all sheets in black LDPE followed by HDPE bags for safe handling and transport. Standard delivery is completed within eight days of order confirmation. Our egg crate acoustic foam solutions offer an efficient, cost-effective, and visually appealing approach to noise control for both residential and industrial environments.
Fire Retardant Options: UL-94, CA-117, BS5852, FMVSS302
Major Use: Sound Absorbing and Sound Diffusion applications.
Other Options: Can be offered with Acoustic Coatings and Self Adhesive Backing.
Note: We are in a position to offer a wide range of Acoustic foam and products. We request you to please drop your inquiries at info@foamvilla.com enabling us to serve you promptly.
Studio, Piano room, Study room, Drum room, Home theater, Meeting rooms, Instrument rooms, Recording room, Canopy & Compressors, Silent rooms, Cinemas, and Multiplexes.
Foam Density: Any required Density ranging from 23 Kg/m3 to 60 Kg/m3
Size: Any Required
Common Color: Grey and White
Supply Ability: No Constraint
Packaging: A set of sheets in a Black LDPE sheet than in an HDPE bag
Delivery: Within 8 days once the order is confirmed.
- Absorb sound energy & highly affordable compared to other acoustic product in market products.
- Flexible, Durable, Easy to Die-cut therefore easy to apply at the application point.
- Carry flame retardant properties, therefore, are safer in every applied application.
- Can be offered with acoustic coating & self-adhesive backing options for better lifespan and product performance.
