Oil Filtration Foam
Product Code: FV-Filtrations-OF

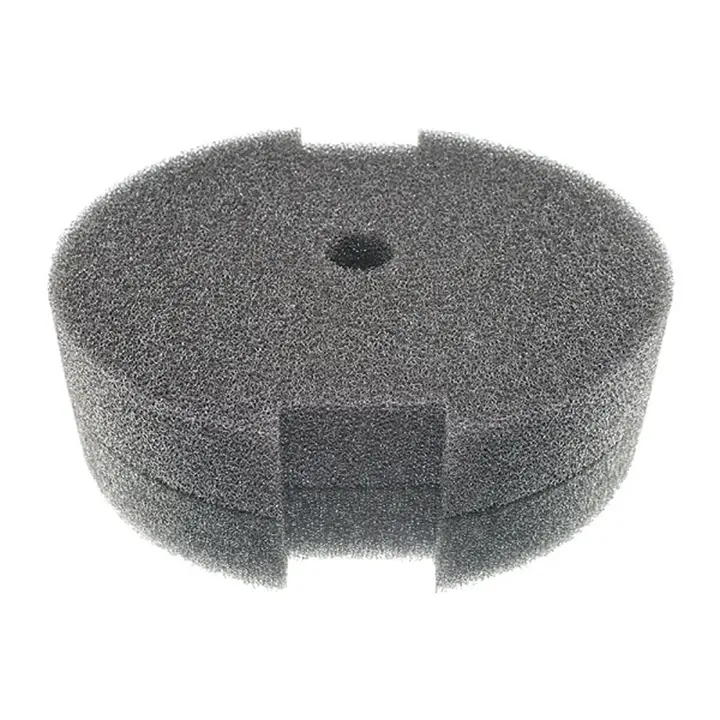

We offer polyester-based reticulated flexible foams, also known as oil filter or open-cell foams, specifically engineered for oil, air, and liquid filtration applications. Made from high-quality polyester, these foams combine durability, chemical resistance, and flexibility, making them ideal for environments where exposure to oil, solvents, and other chemicals is frequent.
The foams are processed to create a reticulated, open-cell structure, where each cell has a 12-sided geometry, ensuring precise and efficient filtration.The porosity of the foam, expressed in PPI (pores per inch) ranging from 15 to 120, allows customization for different filtration requirements, optimizing flow rates, particle retention, and pressure drop.
Description
The polyester material provides excellent tensile strength and dimensional stability, ensuring the foam does not swell, deform, or degrade when in contact with oil, chemicals, or solvents. Its lightweight, open-cell structure also promotes airflow and fluid passage while capturing contaminants effectively.
Available in a variety of densities, sheet sizes, colors, and shapes, the foams can be tailored to meet specific industrial or customer requirements. The PPI, thickness, and density can all be adjusted to suit applications ranging from automotive engine filters and safety tanks to industrial air and liquid filtration systems.
Polyester-based reticulated foams offer significant advantages over standard foams, including accurate filtration due to 100% open-cell structure, long lifespan due to high durability, chemical and oil resistance, and ease of fabrication. They are supplied in common densities of 28 Kg/m³, standard sheet sizes of 2 meters by 1 meter, and colors including white, black, green, and red.
We are in a position to provide polyester filtration foams in the required density, size, quantity, color, and shape, fully customized to meet your specific application needs. Please share your detailed requirements at info@foamvilla.com, enabling us to deliver the most suitable and reliable solution for your filtration challenges.
Oil Filtrations, Manufacturing of Automotive Engine filters, Safety Tanks.
Common Processed Density: 28 Kg/m3
Common Size: Sheet size with length 2 meters & width 1 meter
PPI Range: 15 to 120 count
Thickness: Any
Colour: White, Black, Green & Red.
Supply: No supply constraint.
Packaging: A set of sheets in a Black LDPE sheet than in an HDPE bag.
Delivery: Within 5 days once the order is confirmed.
- 100% open cell structures offer accurate filtration compared to standard foams.
- Lightweight, Low thermal conductivity, Easy to fabricate flexible foam.Available in different PPI enabling to fit in different filtration applications.
